GTH Series Semi-Enclosed Linear Actuators

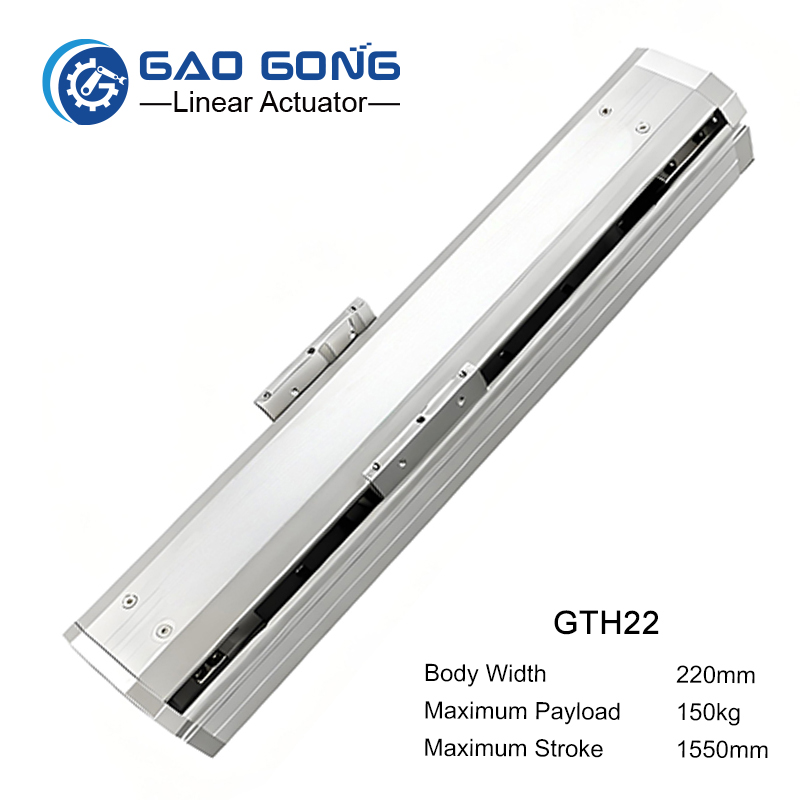

GTH22M
Drive Type:
Ball Screw
Body Width:
220mm
Repeatability:
±0.01mm,±0.02mm
Stroke Range:
50-2400mm
Max. Payload:
130kg
Max. Speed:
1600mm/s
Home & Limit Sensors:
NPN,PNP
Bespoke Options:
Slider,Multi-axis Setup,More options available upon request.
Motor Compatibility:
Servo 0.75kW
