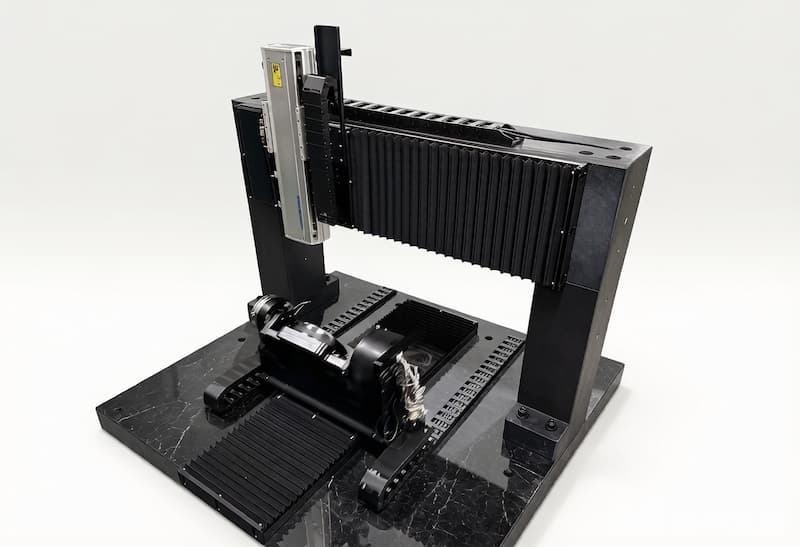

5‑Axis Precision Motion Platform for Semiconductor, Laser Processing, and Optical Metrology
Granite‑Base Linear Motor System｜Sub‑Micron Accuracy｜High‑Rigidity Multi‑Axis Architecture
I. Overview: Why Multi‑Axis Motion Systems Define Modern Manufacturing
In semiconductor packaging, precision laser micromachining, and high‑end optical inspection, the performance of a multi‑axis motion system directly determines production yield, machining accuracy, and automation capability.
Dongguan Gaogong Intelligent Transmission Co., Ltd. provides a 5‑axis precision motion platform engineered for sub‑micron positioning, high rigidity, and long‑term stability, combining a granite machine base with direct‑drive linear motors and high‑torque rotary stages.
II. Core Architecture of the 5‑Axis Motion Platform
1. Metrology‑Grade Granite Machine Base
The platform uses a natural granite base to ensure exceptional thermal stability, vibration damping, and long‑term geometric accuracy. Granite provides a near‑perfect reference surface for semiconductor and optical metrology applications.
2. Hybrid Motion Architecture (Linear Motor + Ball Screw)
To balance speed, rigidity, and load capacity, the system adopts a hybrid motion architecture:
Direct‑drive linear motors deliver zero friction, high acceleration, and ultra‑fast response.
Precision ball screw modules provide high rigidity and self‑locking capability for heavy‑load axes.
This combination ensures sub‑micron positioning accuracy across all five axes.
3. High‑Torque Direct‑Drive Rotary Stage
The integrated direct‑drive rotary stage features high‑resolution encoder feedback, enabling complex multi‑angle machining, curved‑surface interpolation, and synchronized 5‑axis motion.
III. Industry Applications
| Industry | Typical Equipment | Core Motion Requirements |
|---|---|---|
| Semiconductor & Microelectronics | Wafer dicing saws, die bonders, high‑speed dispensers | Sub‑micron bonding accuracy, high‑speed pick‑and‑place |
| Laser Processing | 5‑axis laser cutters, micro‑hole drilling machines, 3D printers | Spatial curve interpolation, micro‑feature machining |
| Optical Inspection & Metrology | Vision measuring machines, CMMs | Granite stability, dynamic tracking |
| New Energy & Consumer Electronics | Battery electrode cutters, smartphone CNC machines | High‑speed multi‑axis linkage |
| Biomedical Engineering | Implant machining, surgical instrument production | Ultra‑precision cutting and surface finishing |
| Aerospace Manufacturing | Turbine blade machining, sensor assembly | Complex trajectory synchronization, force control |
IV. Typical Application Scenarios
1. Curved‑Surface Precision Machining
The rotary stage provides angular positioning while linear axes perform compensatory motion—ideal for aerospace blades, medical implants, and complex 3D contours.
2. Precision Press‑Fitting & Force Control
Integrated with Gaogong’s micro‑servo force‑control actuator, the platform supports synchronized position–force control for connector assembly, sensor press‑fitting, and micro‑mechanical assembly.
3. High‑Speed Visual Tracking
Direct‑drive linear motors enable zero‑backlash, high‑response motion for real‑time visual compensation in optical inspection systems.
4. Micro‑Hole Array Machining
The system eliminates mechanical hysteresis, achieving high consistency in micro‑hole drilling for semiconductor and medical applications.
5. Dynamic Torque Response Testing
5‑axis coordinated motion simulates real‑world load conditions for testing motors, actuators, and high‑precision drive components.
V. Technical Support & Customization
Gaogong provides complete engineering support, including:
Motion system selection
Granite base customization
Linear motor and ball screw configuration
Force‑control parameter tuning
Integration with Delta, Mitsubishi, and other servo systems
Every solution is tailored to the customer’s specific automation and assembly requirements.
