Ultra-Precision Electric Mini Linear Actuators by GaoGong Intelligent Transmission: Revolutionizing Advanced Motion & Force Control

In today’s high-density electronics and automated precision assembly sectors, industrial components are rapidly miniaturizing. Concurrently, the global manufacturing demand for sub-micron displacement accuracy, reliable mechanical rigidity, and intelligent force-feedback loops is skyrocketing. Traditional pneumatic cylinders and bulkier servo cylinders consistently fall short when integrated into ultra-confined spatial layouts, micro-robotics, or semiconductor testing fixtures.

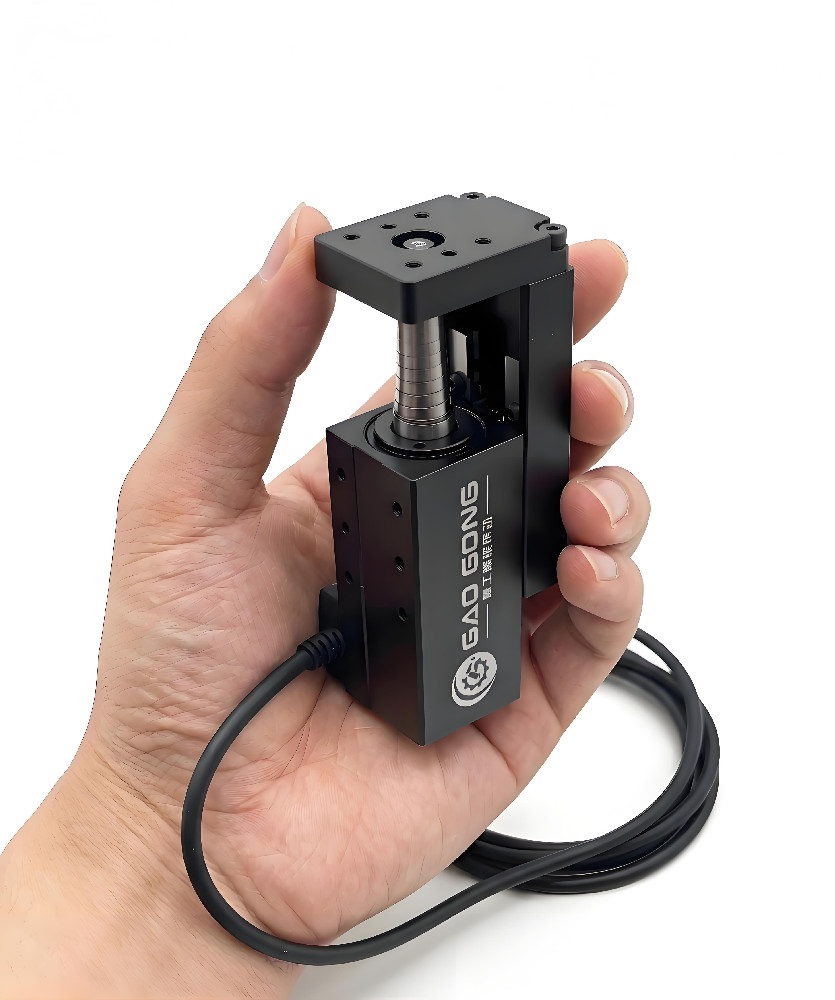

To address these micro-motion challenges, GaoGong Intelligent Transmission Co., Ltd. introduces the cutting-edge GCA2 Series Electric Mini Linear Actuators. This miniature electric cylinder lineup is strategically engineered to redefine the benchmarks of high-speed positioning, multi-angle industrial mounting versatility, and fragile component handling.

Watch the High-Precision Servo Actuator in Action

Before evaluating the comprehensive technical data sheet, observe how our micro servo linear actuator seamlessly executes high-frequency cyclic positioning and dynamic micro-force control tasks in real-time:

Video Demonstration: 1μm Repeatability & Advanced Force Control by GaoGong

---

Model Selection Guide: Versatile Strokes & Multi-Angle Structural Configurations

To accommodate the rigorous spatial constraints of modern automated optical inspection (AOI) lines and pick-and-place systems, GaoGong Intelligent Transmission offers a modular nomenclature with standardized stroke lengths and diverse structural designs.

1. Flexible Programmable Stroke Options (30mm & 50mm)

Our standard micro-motion configurations balance optimal footprint with extended industrial reach:

• 30mm Stroke Spec: Engineered for ultra-confined multi-axis alignment matrices and micro-parts handling.

• 50mm Stroke Spec: Delivers optimized horizontal and vertical travel distances for versatile assembly routines.

2. Multi-Structural Configurations (F0 to F4 Layouts)

Different factory floor layouts require distinctive actuator orientations. The GCA2 platform provides 5 optimized structural variations from F0 to F4, natively supporting Horizontal Mounting, Side Mounting, and Vertical Cantilever Mounting. This highly adaptive structural configuration completely eliminates the necessity for expensive custom CNC brackets.

Standard Model Nomenclature Matrix:

• GCA2-F0-30: F0 Structural Type (Standard Face Mount), 30mm Linear Stroke

• GCA2-F0-50: F0 Structural Type (Standard Face Mount), 50mm Linear Stroke

• (Custom variations spanning F1, F2, F3, and F4 configurations are available to address complex side-mounting and space-restricted automation architectures.)

Core Engineering & Technical Advantages

1. High-Power Density Built-in Servo Motor

Despite its ultra-compact enclosure, this micro linear actuator delivers superior dynamic performance. Driven by a high-power density built-in servo motor, it provides exceptional instantaneous torque, high angular acceleration, and rapid settle-time response, optimizing overall equipment effectiveness (OEE).

2. Next-Gen Absolute Encoder Integration

Eliminate time-consuming homing cycles upon system boot-up or emergency resets. Utilizing a high-resolution absolute encoder, the motion controller instantly reads the absolute spatial coordinates the millisecond power is restored. This significantly enhances production uptime and mitigates mechanical crash risks during unexpected factory power fluctuations.

3. Tri-Row Cross Roller Guide Structure

Mechanical stability governs precision. Our engineers embedded a proprietary tri-row cross roller guide assembly. This design ensures extreme torsional rigidity, superior parallelism, and outstanding load-bearing capacity, enabling the actuator to easily neutralize severe overhung and moment loads during high-velocity side-mounting operations.

4. Sensorless & Ultra-Clean Outer Profile

Say goodbye to external proximity sensors, magnetic limit switches, and cluttered cable management tracks. This intelligent electric cylinder operates completely sensorless. All directional boundaries, safety over-travel zones, and home reference limits are managed digitally and internally via current/position loops, maximizing machine aesthetic and minimizing sensor misalignment vulnerabilities.

5. Sub-Micron Repeatability Within ±0.001mm

Engineered specifically for micro-electronics fabrication, the GCA2 series guarantees an industry-leading bi-directional repeatability of less than 1 micrometer (≤0.001mm). This degree of sub-micron precision is ideal for semiconductor wire bonding, laser tracking, and camera module assembly.

6. Infinite-Position Programmable Stopping Profile

Break free from the rigid mechanical constraints of binary pneumatic actuators. This smart electric slider can be programmed via software to decelerate, stop, hold position, or alter velocity profiles at any arbitrary point across the entire 30mm or 50mm stroke range, empowering agile, high-mix low-volume (HMLV) flexible manufacturing.

7. Micro-Force Control & Soft Landing Technology

Whether your assembly line demands delicate micro-pressing or precise pull-testing, our closed-loop force algorithms have you covered. Featuring real-time precision force control, the actuator executes flawless "Soft Landing" routines onto fragile workpieces (such as thin-film OLED glass substrates, delicate silicon dies, or bio-medical chips), eliminating micro-cracks and cosmetic degradation.

8. Plug-and-Play Intelligent Host Interface

Advanced motion control no longer requires specialized robotics expertise. The GCA2 series interfaces directly with mainstream host computers, programmable logic controllers (PLCs), and industrial PCs (IPCs). Paired with GaoGong’s intuitive, user-friendly graphical interface (GUI), commissioning becomes a straightforward, plug-and-play process. Set up complex multi-segment position, speed, and force parameters within minutes.

Target Industry Applications

• Semiconductor & Micro-electronics: High-speed die bonding, wafer inspection, PCB flying-probe testing, and flip-chip placement.

• Consumer Electronics Automation: Smartphone camera module alignment, smart watch button testing, and acoustic component assembly.

• Medical & Laboratory Automation: Precision pipette liquid handling, automated syringe pumps, and optical bio-assay positioning.

• Precision Inspection Systems: Laser distance sensor calibration, optical lens centering, and digital dial gauge automation.

Contact GaoGong Intelligent Transmission

Maximize your production throughput, reduce your machine footprint, and achieve sub-micron precision with the GCA2 Series Electric Mini Linear Actuators by GaoGong Intelligent Transmission.

[Request a Quote from Our Motion Application Engineers]

[Download GCA2 Series Selection Manual]
