Business Update: Over 1,000 Units of ATH Series Built-in Guideway Actuators Shipped to European Automation Leader

We are pleased to announce the successful delivery of a high-volume order consisting of over 3,000 units of our ATH Series Built-in Guideway Ball Screw Actuators to a premier automation equipment manufacturer in Europe. This shipment highlights the global industry's transition toward compact, high-rigidity linear modules and reinforces our commitment to supporting large-scale international automation projects with reliable, precision-engineered components.

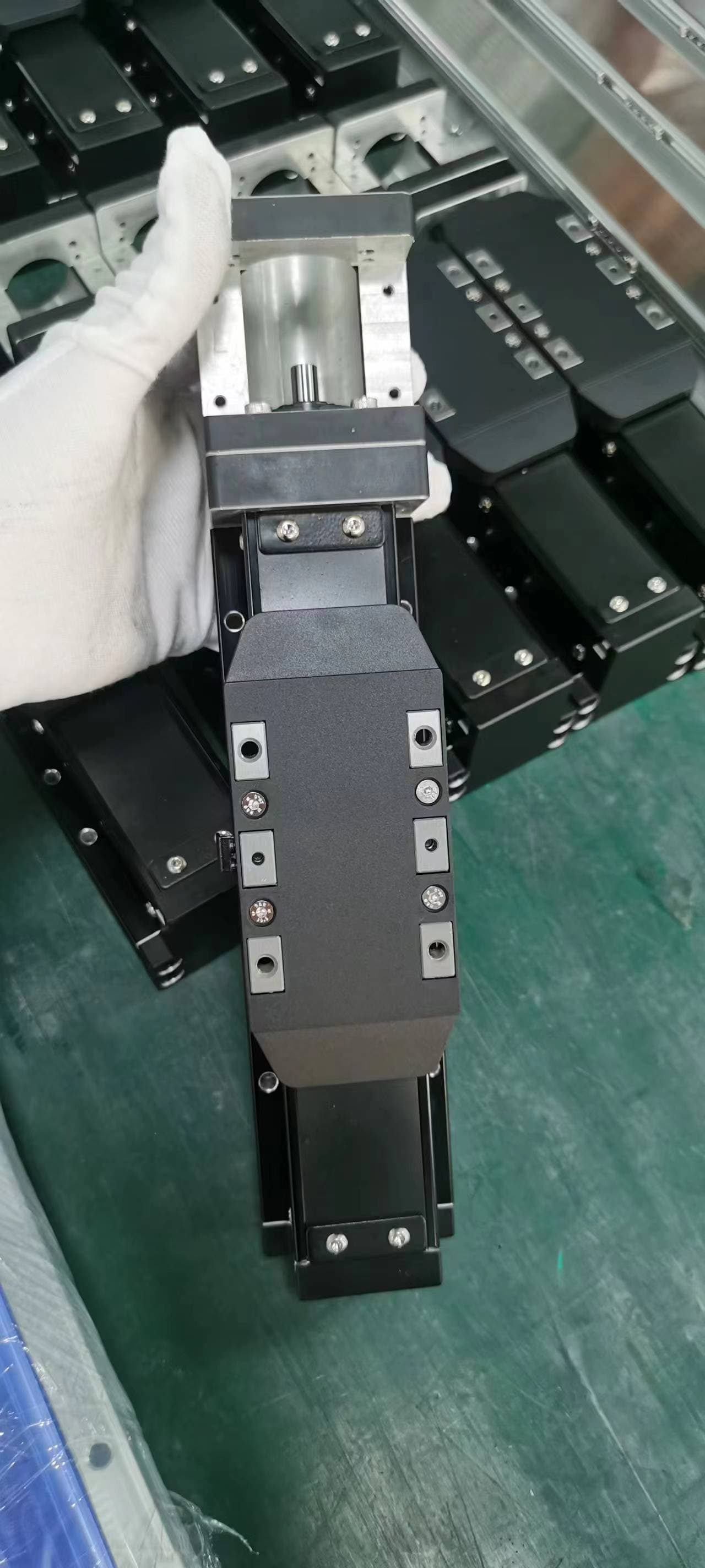

The ATH Series represents a significant evolution in linear motion technology. By embedding the guideway into the actuator body, we provide a streamlined, low-profile solution that does not sacrifice the mechanical integrity required for demanding industrial applications.

Technical Excellence: The ATH Advantage

The ATH Series was selected by our European partners following rigorous testing of its straightness, durability, and ease of integration. Key technical features include:

• Integrated Precision: The rail is precision-ground after being embedded into the aluminum base, achieving an exceptional running straightness and flatness of ±0.02mm.

• Reinforced Rigidity: Unlike traditional aluminum sliders, our one-piece molded steel slider provides the structural stiffness necessary to handle high-moment loads and prevent deformation during high-speed cycling.

• Contamination Protection: A specialized stainless steel cover strip protects internal components from debris, making the ATH series suitable for cleanroom environments.

• Maintenance Efficiency: Featuring external grease nipples, the series allows for rapid lubrication maintenance without the need to disassemble the cover strip.







Advanced Customization: Precision Beyond Standard Specs

Recognizing that every automation project has unique requirements, we offer extensive customization options for the ATH Series:

1. Ultra-High Precision Screw Grades: While standard units feature C7 grade screws, we provide optional C5 and C3 grade ground ball screws for applications requiring extreme lead accuracy and minimal backlash.

2. Flexible Stroke Lengths: Beyond our standard catalog maximums, we offer custom stroke lengths tailored to your specific machine footprint.

3. Dual-Slider Configurations: To increase load capacity or support wider mounting plates, we can configure the ATH modules with dual sliders (carriages) on a single axis.

4. Multi-Axis Systems (XYZ): The ATH Series is designed for modularity. We provide complete multi-axis gantry or cantilever systems, including all necessary brackets and connecting plates.

Ordering Method & Naming Rule

To simplify the procurement process for our global clients, the ATH Series follows a standardized naming convention. Below is an example of the ordering code:

Example Code: ATH8 - L10 - 1050 - BC - M20B - C4 - 0001

• Model: ATH4, ATH5, ATH8, ATH10, ATH12.

• Lead (Screw Pitch): 2mm, 5mm, 10mm, 20mm (Varies by model).

• Stroke: 50mm to 1250mm (Custom strokes available).

• Motor Position:

• BC: Motor Exposed.

• BM: Motor Bottom Side.

• BL/BR: Motor Left/Right Side.

• Motor Brand/Power: Supports Mitsubishi (M), Panasonic (P), Yaskawa (Y), Delta (T), and more.

• Sensor Options: Home sensors and limit sensors (Available in internal or external configurations).

Technical Specifications (ATH Series Core Lineup)

• Repeatability: ±0.01mm.

• Max Speed: Up to 1000mm/s (depending on lead).






Empowering Global Industry 4.0

From semiconductor assembly to medical device packaging, the ATH Series provides the mechanical foundation for modern Smart Factories. Our CE-certified modules ensure compliance with international safety and quality standards, providing peace of mind for exporters and global integrators.

Contact Us:
For 3D CAD files, custom configuration inquiries, or to request a quote for your next project, please contact our technical sales department.
