Boosting Throughput: The Role of GAOGONG ATH Linear Actuators in Automated Assembly Lines

High-speed pick-and-place gantries and heavy payload assembly lines share a common enemy: structural deflection. When a multi-axis system accelerates rapidly, the inertia generated can cause minor bending and vibration in the linear axes. For precision automation, this subtle movement leads to micro-faults, rejected parts, and forced slowdowns in cycle times.

To eliminate this bottleneck, automation designers are moving away from standard, light-duty slides. Instead, they are turning to high-rigidity solutions like the GAOGONG ATH Series linear actuators to maintain micron-level precision under the stress of continuous, high-throughput production.

The True Cost of Axis Deflection in High-Speed Lines

When designing an automated line for EV battery stacking, automotive component assembly, or heavy electronics handling, cycle time is everything. However, increasing the speed of a linear stage often forces a compromise on stability.

Traditional linear modules with weak cross-sections experience torsional twisting during rapid directional changes. This deflection introduces two major issues to the factory floor:

• Settling Time Bottlenecks: The controller must wait for structural vibrations to dissipate before the next assembly step can begin, adding critical milliseconds to every cycle.

• Accelerated Component Wear: Misalignment caused by bending puts uneven stress on the internal ball screws and linear guides, drastically shortening the machine’s lifespan.

The ATH series addresses these physical limitations through robust mechanical engineering.

Inside the ATH Series: Engineered for Rigidity and Speed

The GAOGONG ATH Series ball screw driven linear actuators are purposely built to bridge the gap between heavy payload capacity and high-speed repeatability.

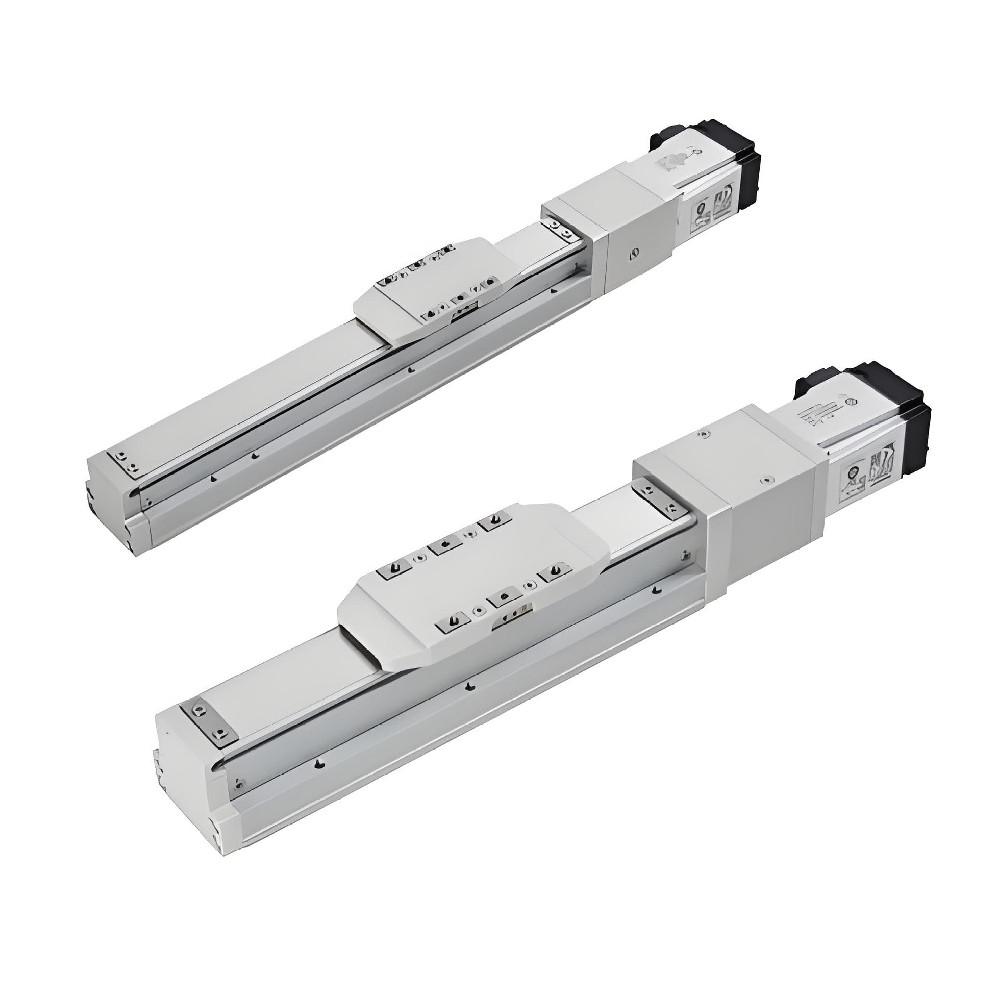

Figure 1: Premium silver configuration of the GAOGONG ATH8 linear actuator, featuring a high-rigidity aluminum profile base and robust integrated linear guiding components.

1. High-Rigidity Aluminum Profile Base

The foundation of the ATH series is its optimized aluminum profile body. Rather than using a standard generic enclosure, the structural cross-section is engineered to maximize resistance to bending and twisting moments. This allows the linear stage to support substantial cantilevered loads during high-acceleration cycles without geometric distortion.

2. Eliminating Position Drift with Micron Repeatability

Throughput loses its value if accuracy degrades over time. Utilizing precision rolled or ground ball screws paired with heavy-duty linear guide rails, the ATH linear modules achieve a micron-level repeatability ($\pm 0.01\text{mm}$). This ensures that whether it is the first cycle or the millionth, the actuator reaches its exact coordinate without drift.

3. Streamlined Maintenance for Maximum Line Uptime

In a 24/7 manufacturing facility, stopping the line for maintenance is costly. ATH linear actuators feature accessible external grease nipples. Plant technicians can lubricate the internal guiding components swiftly without dismantling complex machine shrouds, minimizing Scheduled Maintenance Downtime (SMD).

GAOGONG ATH Series Quick Selection Matrix

To streamline your engineering design phase, the GAOGONG ATH Series is divided into Small, Medium, and Large form factors to cover every automation requirement from delicate handling to heavy-duty positioning:

Note: For engineering teams looking for high-rigidity alternatives to standard industrial modules like the TOYO GTH series (such as GTH4, GTH5,GTH8, or GTH12), the GAOGONG ATH series offers fully interchangeable cross-sections and upgraded micron-level repeatability. Please consult our application team for direct drop-in replacement dimensions.

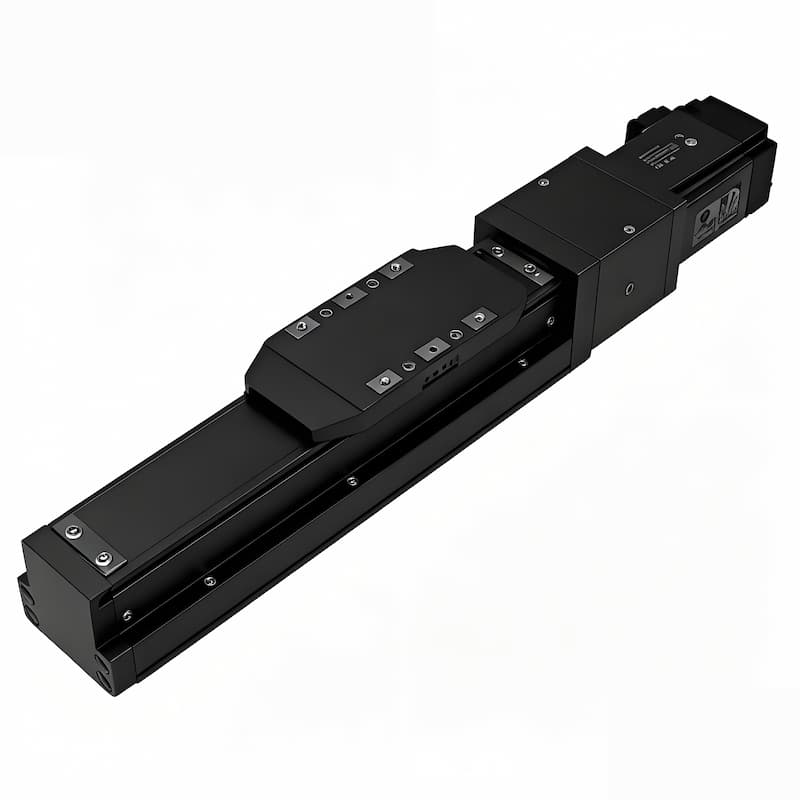

Figure 2: Custom black hard-anodized version of the ATH series, specifically engineered to minimize light reflection and enhance surface corrosion resistance in specialized multi-axis cells.

Direct Applications on the Factory Floor

The rigidity of the GAOGONG ATH Series linear stages makes them a preferred choice for demanding industrial roles:

• Heavy Payload Cartesian Gantries: Serving as the robust X and Y base axes that handle the sudden momentum changes of robotic grippers. Large-scale models such as the ATH12 (110 kg capacity), ATH14 (120 kg capacity), and the flagship ATH17 (150 kg capacity with a rigid 170 mm base width) are engineered specifically to overcome severe cantilevered forces and eliminate geometric drift in heavy gantries.

• Lithium-ion Battery Assembly: Managing the continuous, rapid transferring and stacking of heavy prismatic or pouch cells. For medium-weight payloads, the mid-sized ATH8 (50 kg payload) and ATH10 (70 kg payload, up to 1050 mm stroke) provide the optimal sweet spot between acceleration dynamics and structural integrity.

• Multi-Point Precision Dispensing: Delivering the smooth, vibration-free linear travel necessary for flawless adhesive application on complex electronic housings. Compact modules like the ATH4 (44 mm width) and ATH5 (54 mm width) excel here, offering up to 500 mm–800 mm of precise travel while minimizing the machine's overall footprint.

Conclusion: Securing Long-Term Line Efficiency

Maximizing throughput requires components that thrive under mechanical stress. The GAOGONG ATH Series linear actuators eliminate the weak links in your motion control system by replacing structural deflection with rigid, predictable performance. Implementing the ATH series into your automated machinery ensures faster cycle times, fewer defects, and an architecture built for long-term reliability.

Optimize Your Motion System Today

GAOGONG offers full technical support, including 3D CAD model access and tailored configurations for your stroke, payload, and speed requirements.

Drop-in Replacements: Budget-friendly and high-performance alternative cross-sections for mainstream TOYO GTH series linear modules.

• 🔎 Explore Technical Details: Discover the GAOGONG ATH Series Linear Actuator

• 📩 Get a Custom Quote: Contact a GAOGONG Application Engineer
