The Ultimate Selection Guide: How to Choose the Right Left and Right Hand Ball Screw Actuator for Your Project

In modern industrial automation, achieving synchronized, symmetrical, and bi-directional motion is a common yet highly demanding challenge. Whether you are designing high-precision centering clamping mechanisms, web guiding systems, or lithium-ion battery cutting machines, standard linear modules often fall short. This is where Left and Right Hand Ball Screw Actuators (also known as Bi-directional Ball Screw Linear Actuators) become the definitive solution.

As a leading global manufacturer of precision motion control systems, GAOGONG (GG Linear Actuator) offers industry-proven solutions designed to optimize your machinery's performance. In this ultimate selection guide, we will break down the critical engineering parameters and introduce how our flagship ATH Series and GTH Series standard linear modules can be uniquely configured into dual-carriage bi-directional systems to help you choose the ideal actuator for your specific project requirements.

1. Understanding the Core Mechanism: What is a Left & Right Hand Ball Screw Actuator?

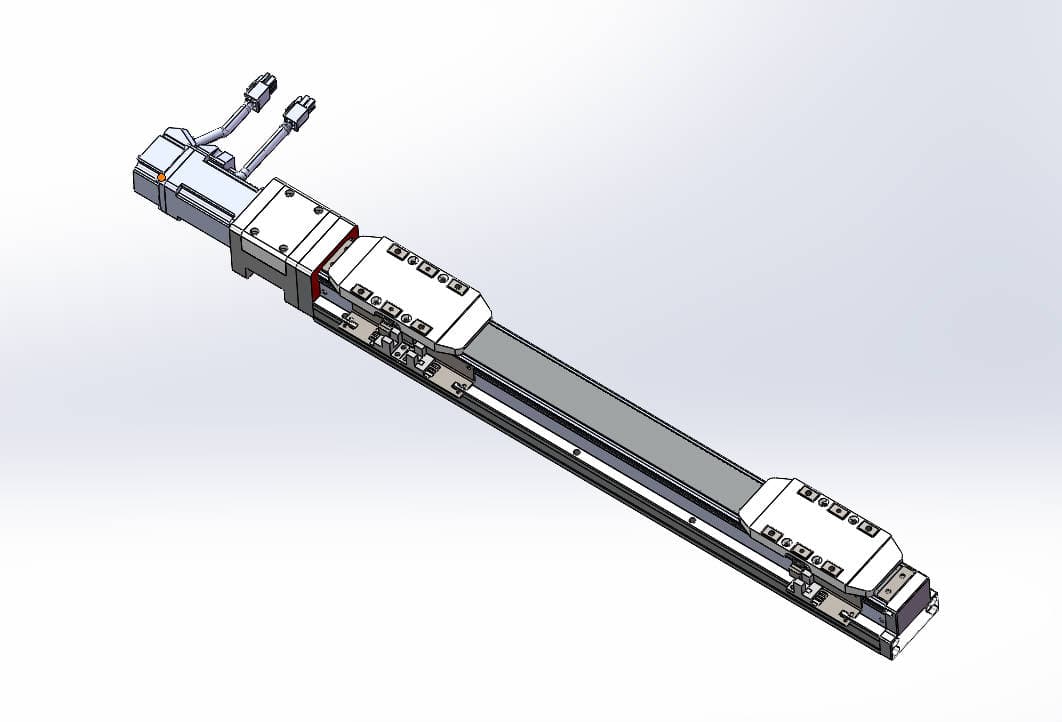

Unlike standard linear actuators that utilize a single-direction thread, a Left and Right Hand Ball Screw Actuator integrates two opposite-handed threads (one left-hand and one right-hand) onto a single, monolithic screw shaft.

When the servo or stepper motor rotates the shaft, the two internal ball screw nuts move symmetrically—either simultaneously approaching the center or moving outward toward the ends. This unique mechanical architecture eliminates the need for complex dual-motor configurations or cumbersome belt-and-pulley linkages, guaranteeing absolute mechanical synchronization for centering and opening/closing applications.

2. Key Technical Parameters for Actuator Selection (The Engineering Checklist)

To ensure the longevity and positioning accuracy of your linear system, global automation engineers must evaluate the following specifications before purchasing:

A. Load Capacity & Moment Rigidities (Payload & Torque)

• Dynamic Load Rating ($C_a$) & Static Load Rating ($C_{oa}$): Ensure the actuator can withstand both operational forces and sudden impact loads.

• Allowable Static Moment ($M_a,M_b,M_c$): Left/right hand setups often handle overhanging loads during clamping. Check the pitch, yaw, and roll moments to prevent premature rail wear.

B. Stroke Length & Critical Speed Limitations

• Stroke Length (Travel Range): For dual-nut bi-directional actuators, the total stroke usually refers to the distance each carriage travels, or the maximum opening/closing distance.

• Critical Speed ($N_c$): Long-stroke ball screws are prone to "whipping" at high rotational speeds (RPM). If your project requires high velocity over a long distance, the screw diameter and lead must be carefully calculated.

C. Positioning Accuracy & Repeatability

• Axial Backlash: Crucial for precise bi-directional positioning. Ground ball screws (JIS C3/C5 grade) offer near-zero backlash, while rolled ball screws (C7 grade) provide cost-effective efficiency.

• Repeatability: Most precision applications require a high-level repeatability of $\pm 0.005\text{mm}$ to $\pm 0.01\text{mm}$.

3. GAOGONG (GG) Premium Solutions: Customizing ATH & GTH Series into Bi-Directional Systems

At GAOGONG, our flagship ATH Series and GTH Series are highly versatile linear modules. While our standard catalog models feature a single-carriage setup for traditional linear positioning, both series can be fully engineered and customized with left and right-hand ball screws and dual carriages to fulfill your bi-directional synchronization needs.

📊 Quick Comparison: ATH Series vs. GTH Series (Bi-Directional Configuration)

Deep Dive 1: ATH Series Embedded Precision Linear Actuators

The GAOGONG ATH Series (including ATH5, ATH8, ATH10, ATH12) is engineered for applications where space is at a premium but precision cannot be compromised. By embedding the linear guide ways directly into the aluminum base, the ATH series achieves an incredibly low-profile cross-section.

When customized from a standard single-carriage into a left/right-hand dual-carriage actuator, the ATH series provides silky-smooth, high-speed symmetrical motion, making it ideal for cleanroom environments, semiconductor handling, and optical inspection alignment.

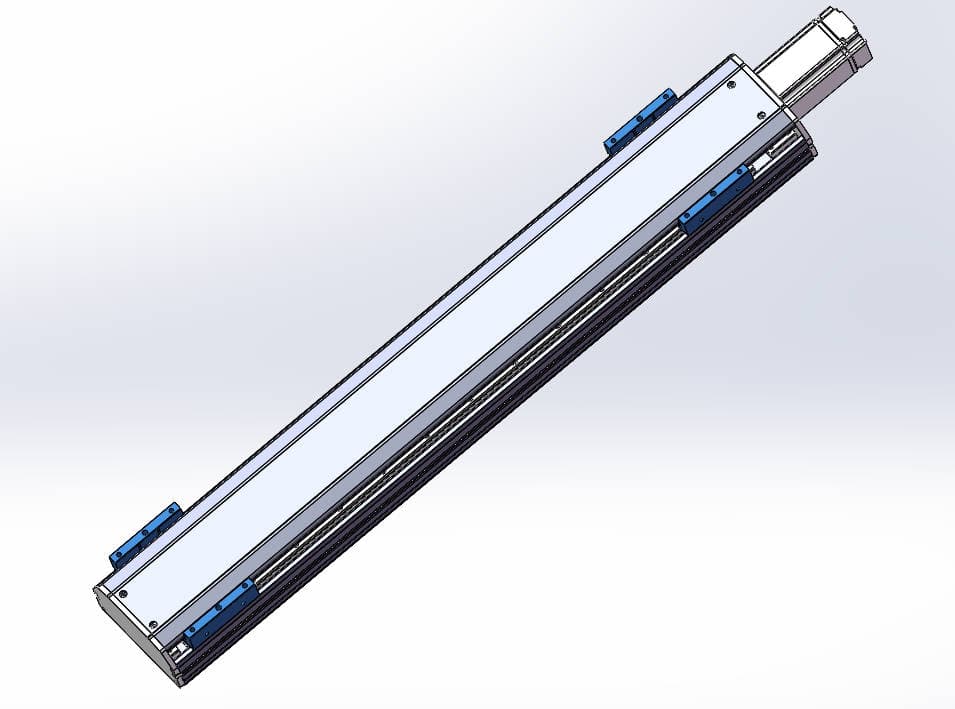

Deep Dive 2: GTH Series High-Rigidity Linear Actuators

For heavy-duty industrial environments, the GAOGONG GTH Series is the industry benchmark. Built with a specialized steel alloy body or a highly rigid structural design, the GTH series minimizes deflection even under severe external forces.

When configured as a customized dual-carriage bi-directional system, the GTH left and right-hand actuator maintains rock-solid parallelism and structural straightness under heavy forces. It is widely used in high-force centering clamps, heavy-duty gripping mechanisms, or automated cutting systems (such as battery foil slitting), preventing tracking errors and ensuring maximum service life.

4. Typical Industrial Applications

Where do global engineers deploy GAOGONG’s bi-directional linear systems?

1. Centering and Clamping Systems (Pick-and-Place): Symmetrically centering workpieces of varying sizes onto conveyor belts without changing the mechanical center point.

2. Lithium-ion Battery Manufacturing: Precisely adjusting the width of slitting blades or guiding rolls via left-right hand synchronized adjustment.

3. Web Guiding & Tension Control: Maintaining the exact centerline of moving materials (paper, textiles, films) in printing and packaging machinery.

4. Automated Door & Gate Openers: Providing smooth, simultaneous dual-leaf opening and closing motion in high-end automated logistics centers.

Conclusion: Get Your Custom CAD Drawing from GAOGONG Today

Choosing the perfect left and right hand ball screw actuator requires balancing load, speed, space constraints, and budget. At GAOGONG Intelligent Transmission, we don't just supply standard catalog items; we provide tailored engineering solutions.

Whether your project demands the space-saving agility of our ATH Series or the heavy-duty endurance of our GTH Series, our dedicated application engineers can customize our standard single-carriage platforms into the perfect left-and-right-hand dual-carriage configuration for you.

• Need a 3D CAD step file?

• Looking for custom screw leads, motor mounts, or specialized strokes?

Visit our official website at gglinearactuator.com or contact our global sales team today to receive a free technical consultation and quotation within hours. Let's precise your motion together!
